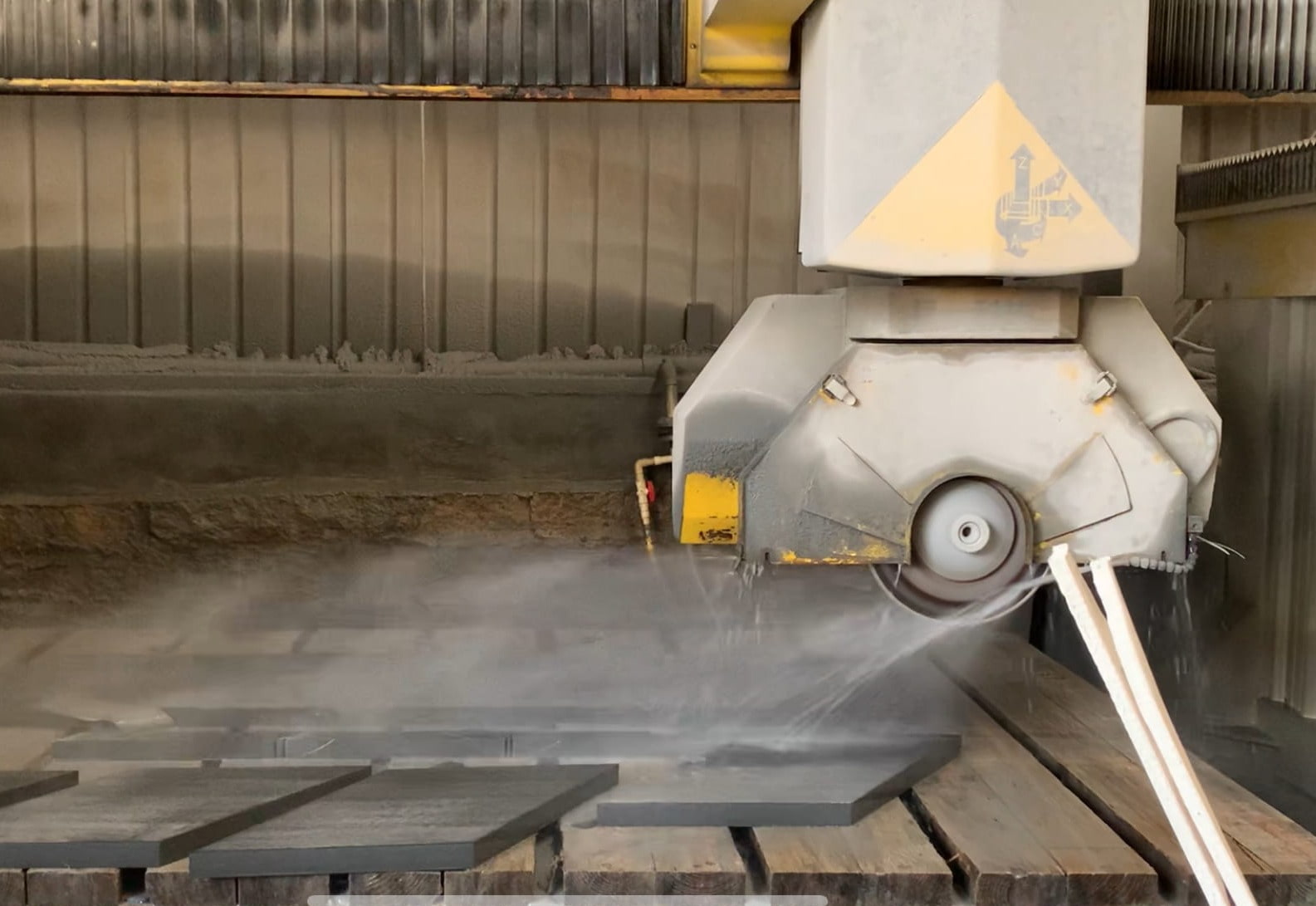

Горячая продажа 5-осевого фрезерного станка с ЧПУ по камню с интегрированным мостовым режущим станком
Разработано для сложных поверхностей, деталей особой формы и художественной резьбы! Интеллектуальный 5-осевой Система обеспечивает комплексную обработку, воплощая ваши концепции в реальность с высокой эффективностью и точностью, значительно повышая производительность и рентабельность.
Модель продукта :
JZYTJ-600Сертификация :
CE, ISOТехнические характеристики :
6000*3300*3850mmИсточник :
QuanzhouПорт :
XiamenДоступны образцы :
NoПослепродажное обслуживание :
ProvidedГарантийный срок :
1 Year
| Project | Parameter | |
| The Machine Stroke | X axis stroke (mm) | 3400 |
| Y axis stroke (mm) | 2000 | |
| Z axis stroke (mm) | 500 | |
| A axis stroke (°) | 0-90 | |
| C axis stroke (°) | ±365 | |
| Cutting thickness (mm) | 0-210 | |
| General Configuration | Fast running speed (m/min) | 25 |
| Spindle power (kw) | 18.5-22 | |
| Spindle speed (rpm) | 0-3500 | |
| Saw blade diameter (mm) | 300-700 | |
| Platform size (mm) | 3400*2000 | |
| Flip angles (°) | 0*85 | |
| The total power (kw) | ≈33 | |
| The total weight (kg) | ≈7500 | |
| Equipment dimensions (mm) | 6000*3300*3850 | |
| Functional Configuration | Camera function | Yes |
| Knife function | Optional | |
| Thickness function | Optional | |
| Chuck function | Optional | |
| Cutter function | Optional | |
(1)Servo Motors and Reducers
Precision servo motors and reducers ensure high-speed, high-torque, and gap-free motion on the A-axis (swing) and C-axis (rotation). This enables one-time, perfect machining of any spatial surface, eliminating tool marks and achieving a surface finish of 8 or higher, eliminating subsequent polishing steps.

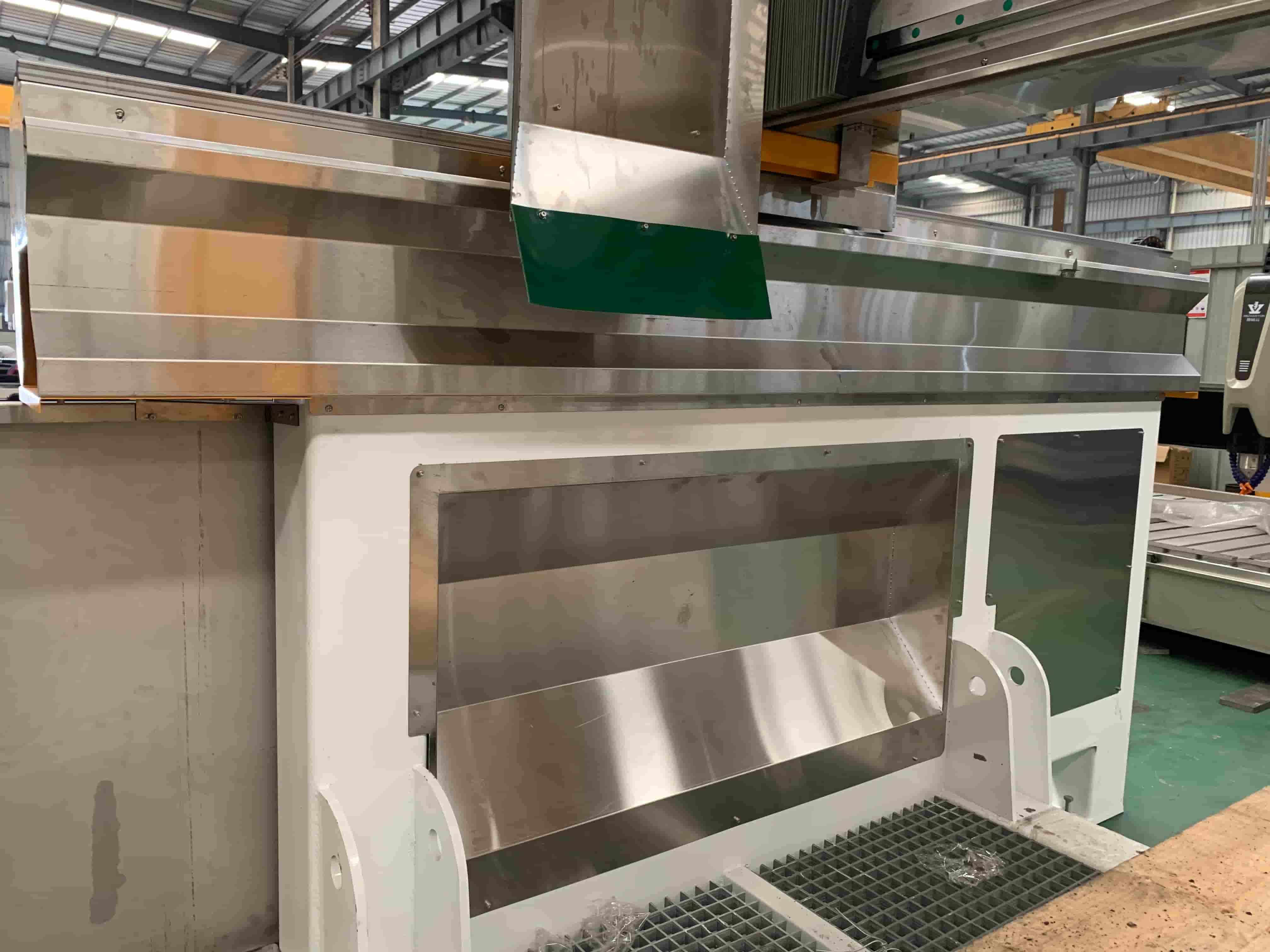

(2)Firm Machine Bed
The machine bed is constructed of solid mineral castings and high-quality cast iron, offering excellent shock absorption and thermal stability, ensuring geometric accuracy is maintained even under heavy cutting loads. The X/Y/Z axes are driven by high-power servo motors and precision rack and pinion gears, resulting in high speeds (up to 30 m/min in idle travel), high thrust, deep cutting depth, and doubled machining efficiency.

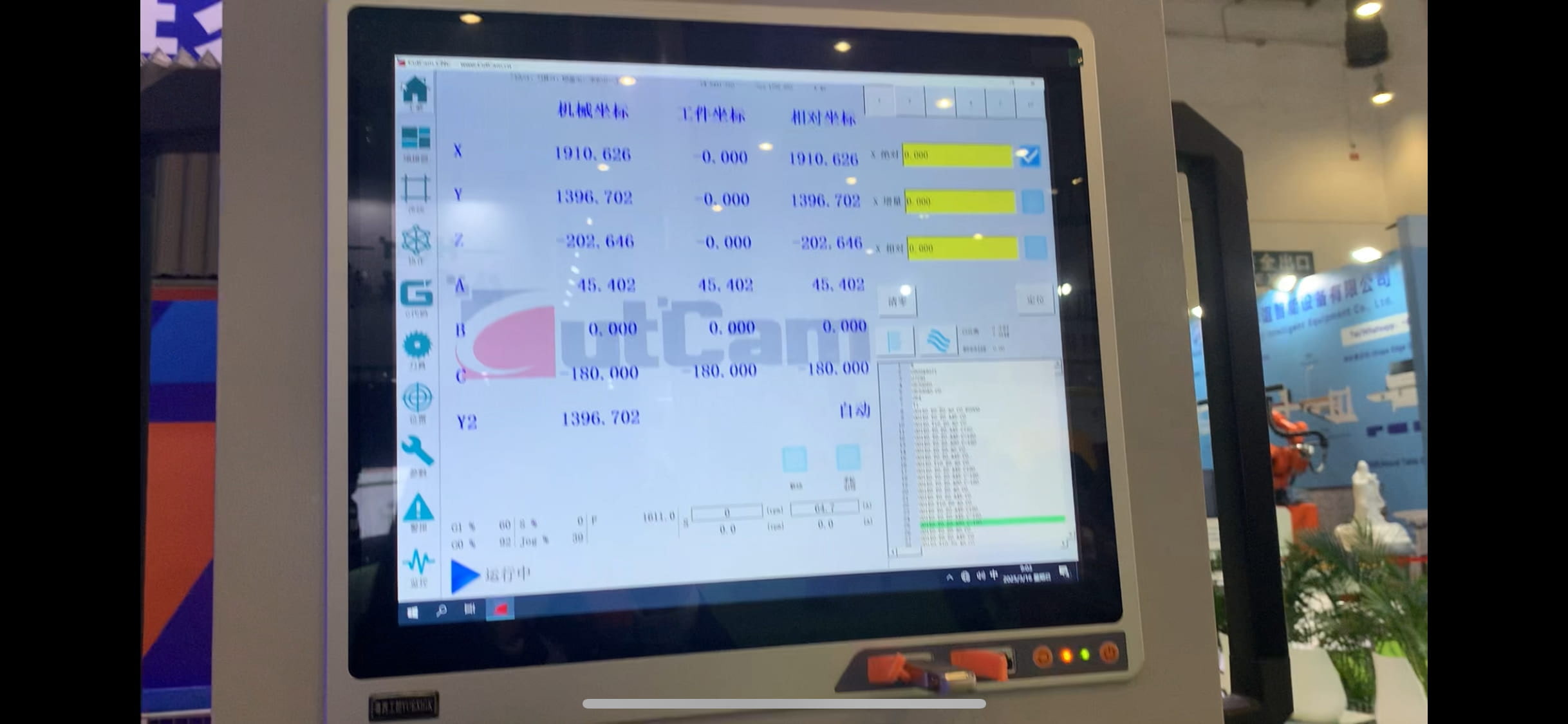

(3)User-friendly
Built-in industrial-grade PC with pre-installed dedicated CAD/CAM software. Supports one-click import of 3D models (such as STL, IGES, and DXF formats) for automatic generation of efficient, collision-free toolpaths. A fully Chinese graphical interface simulates the machining process and provides error-prevention warnings. USB flash drive transfer is supported, allowing offline programming without wasting machine time.
Application Scenario
Exterior Architectural Design: Complex curtain wall panels, Roman columns, arches, and window moldings.
Interior Design: Artistic wall panels, custom-shaped staircases, fireplaces, and door frames.
High-end Bathrooms: Integrated washbasins, massage bathtubs, and countertops.
Stone Furniture: Tabletops, coffee tables, and stools.
Art: Portrait/animal sculptures, reliefs, and tombstone carvings.
Religious Products: Statues, shrines, and religious symbols.
Our Services-
Service and guarantee: eliminate worries
Professional Consulting √: Engineers provide one-on-one selection advice.
Global Installation √: Professional engineers provide on-site installation and commissioning.
Skills Training √: Comprehensive operation and programming training is provided.
Warranty √: 12-month warranty for the entire system, with an extended warranty for core components.
Online Support √: 24/7 remote technical support for rapid response.

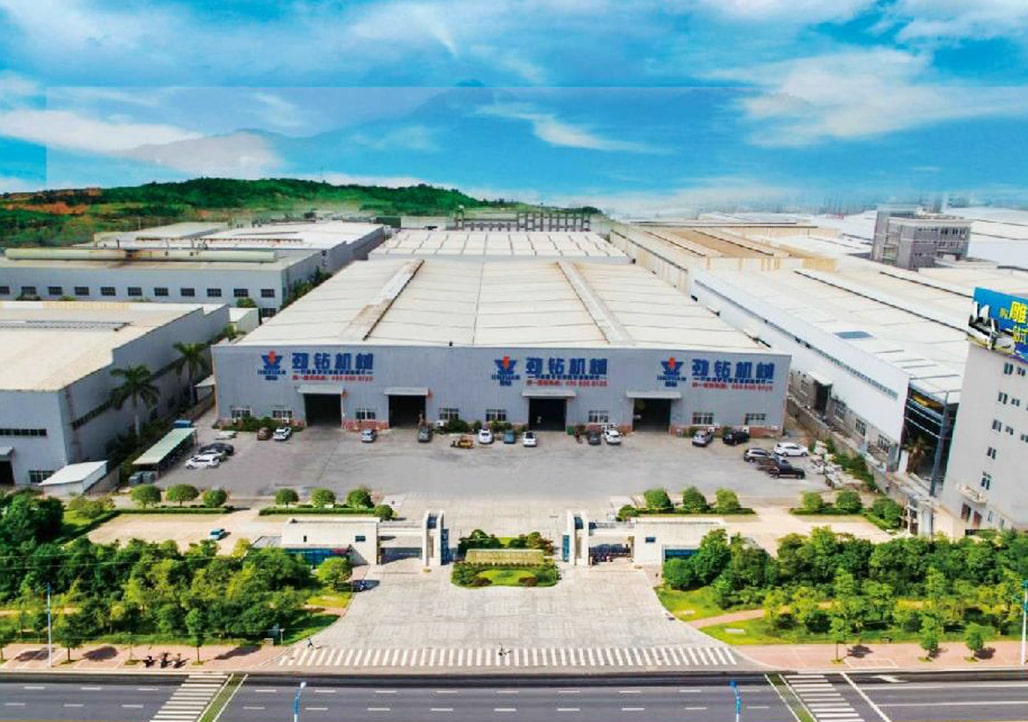

Company Profile
Exhibition
Certificate
Our company has become a domestic CNC engraving machine production and export volume of enterprises. Strong engraving machine in China has been in a leading position,and one time through IS09001,CE certification, ROHS certification an bv certification.
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time.
Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province. The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
